3G-SDI Video Over Fiber Optic Extender Converter With 4Ch HDMI Video Output

Brand Name : E-link

Model Number : LNK-3G-1V4H Series

Certification : ISO9001

Place of Origin : China

MOQ : 1 unit

Price : negotiation

Payment Terms : T/T, Western Union, MoneyGram,PayPal

Supply Ability : 10000pcs/Month

Delivery Time : 5-10 working days

Packaging Details : Fiber Media Converter Standard Package

Fiber Interface : Simplex LC

Transmission Distance : 550m-20Km

Wavelength : 1310nm/1550nm

Power Supply : DC 5V

Power consumption : <5W

Weight : 1.5KG/pair

Contact Now

3G-SDI Video over Fiber Optic Extender Converter with 4Ch HDMI Video Output

SDI Fiber Converter Advantages

  • Transmitter with 1Ch 3G-SDI input and loop out
  • Receiver with 1Ch 3G-SDI output and 4Ch HDMI output
  • Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
  • Directly compatible with 3G-SDI camera systems
  • Long transmission capability at least 10 km (6.2miles) , up to 80 km

Overview

LNK-3G-1V4H Series 3G-SDI Fiber Extender supports 1-channel 3G-SDI Video (audio embedded) transmitted via fiber optical cable, and monitor the signal locally over a 3G-SDI loop output. E-link 3G-SDI Video over Fiber Converters includes one transmitter with loop out and one receiver with 1Ch 3G-SDI and 4Ch HDMI Output.

Order Information

Model Description
LNK-3G-1V4H 3G-SDI Fiber Extender, Transmitter with 3G-SDI input and loop out, Receiver with 1Ch 3G-SDI output and 4Ch HDMI output, SMF, LC Fiber Connector 20KM, used by pairs

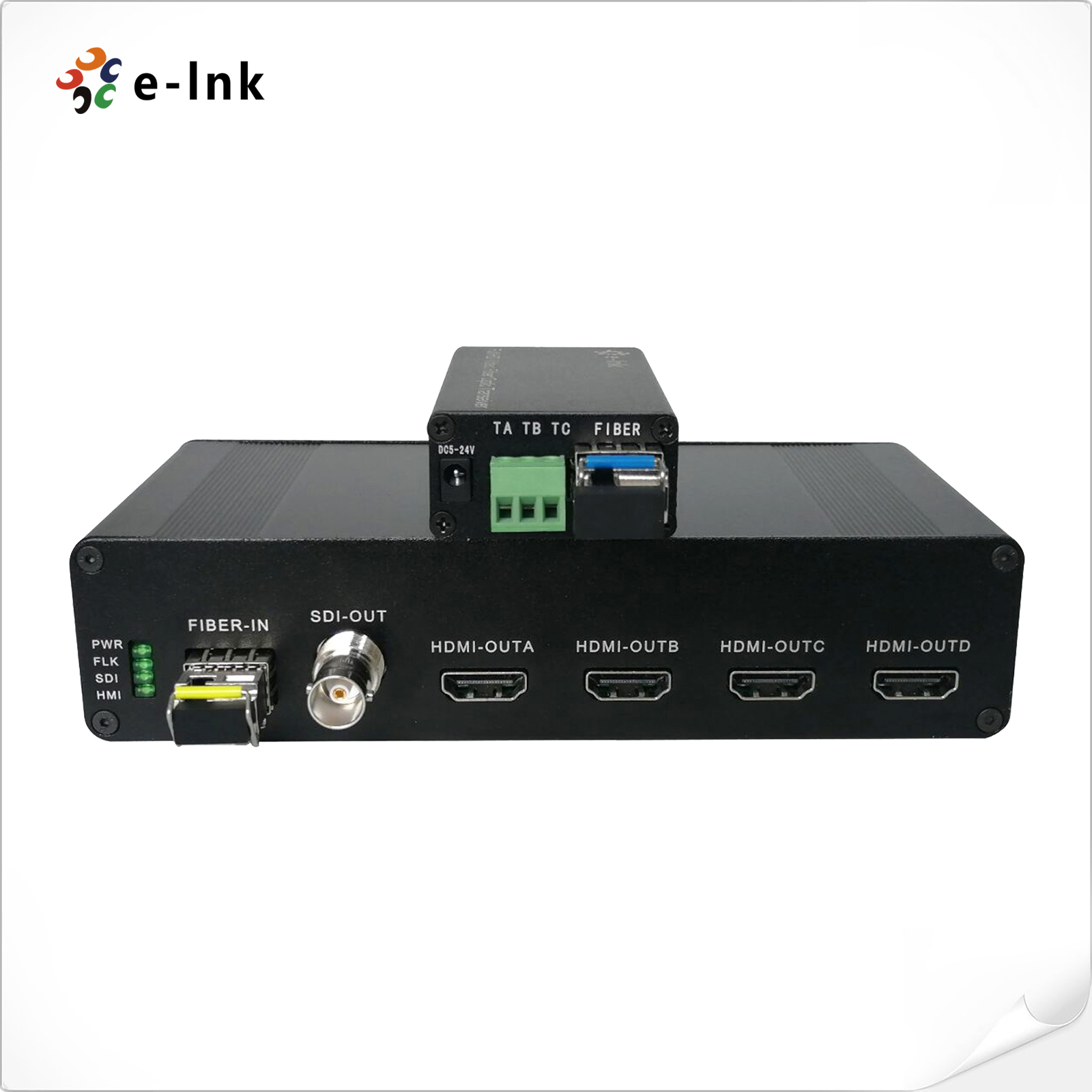

3G-SDI Video Over Fiber Optic Extender Converter With 4Ch HDMI Video Output

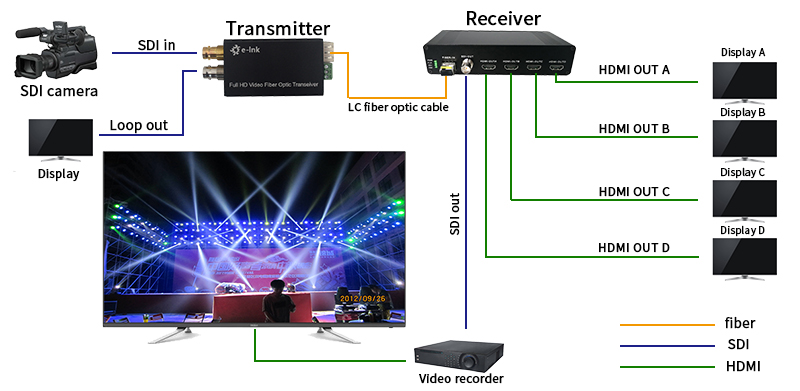

3G-SDI Video Over Fiber Optic Extender Converter With 4Ch HDMI Video Output

Specifications

Fiber Optical interface
Fiber interface Simplex LC
Transmission distance 550m-20Km
Wavelength 1310nm/1550nm
Video - SDI
Video interface BNC
Video input/output impedance 75Ω
Video input/out put voltage Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate Max 3.2Gb/s
Differential gain (10%～90% APL) <1%
Video SDI standard 270Mbps(SD-SDI), 1.485Gbps/M(HD-SDI)
SMPTE425M3Gb/s Mapping(3G-SDI)
SMPTE424M 3Gb/s serial interface(3G-SDI)
Video - HDMI
Connector Female HDMI type A
Impedance 100Ω
Resolution Up to 1920*1200@60Hz
HDMI Cable Range <5Meter
Electrical
Power adaptor DC 5V
Power consumption <5W
LED Indicator
PWR Power Supply
FLK Fiber Link
SDI SDI Video
HMI HDMI Video
Mechanical
Dimensions (LxWxH) Transmitter: 72 x 42 x 22 mm
Receiver: 164 x 72 x 38 mm
Weight 1.5KG/pair
Casing Aluminum Case
Mounting Options Desktop
Environmental
Working Temperature -20℃～+70℃
Storage Temperature -40℃～+80℃
Working Humidity 0~95%
MTBF ≥100000 hours
